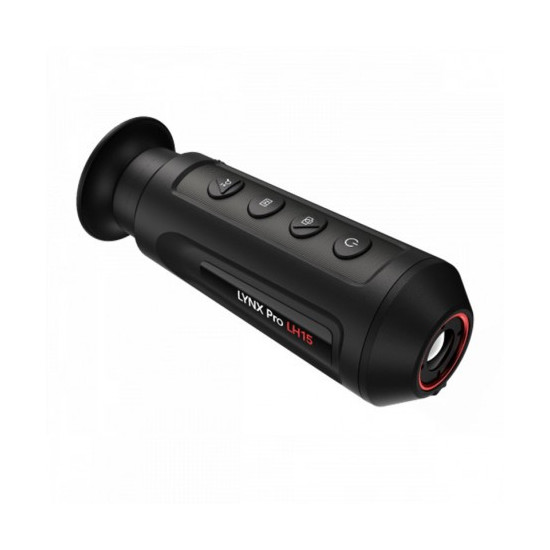

HikMicro LYNX Pro LH15 Thermal Monocular

HikMicro LYNX Pro LH15 Thermal Monocular

The HikMicro Lynx Pro LH15 monocular offers a significant difference compared to the LE models of the same range (LE10/LE15): its thermal sensor. The resolution of the sensor in this model is 384 x 288 px, providing a clearer and more precise image. This is also true for the screen that displays the captured images: it is twice as large (0.4" compared to 0.2" on the LE models) and offers a resolution of 1280 x 960 pixels. However, many features are similar to the LE15: a range of 708m, digital zoom up to 8x, 15 mm focal length, WiFi functions, photos and videos, ... The viewing comfort of the LH15 thermal imaging device is undeniably superior to the LE15 models, making subject identification much easier.

Main Features:

• Resolution 384 × 288 px, 12 μm, high sensitivity sensor
• Adaptive AGC, DDE, 3D DNR, NETD less than 35 mk (@25°C)
• 0.4-inch LCOS screen with 1280 × 960 px resolution
• Integrated rechargeable lithium battery
• Up to 7.5 hours of continuous use
• Wi-Fi access point
• Type-C interface

Delivered with:

• 1 quick start guide
• 1 dust cloth
• 1 USB cable
• 1 protective pouch
• 1 wrist strap

Thermal Sensor

• Sensor: Uncooled vanadium oxide focal plane arrays
• Resolution: 384 × 288
• Pixel Interval: 12 μm
• Frequency Band: 8 μm to 14 μm
• NETD: ≤ 35 mk (@25°C), F#=1.0
• Focal length: 15 mm
• Field of view: 17.5° × 13.1° (H × V)
• Digital zoom: 1 ×, 2 ×, 4 ×, 8 ×
• Aperture: F1.0
• Magnification: 1.47 to 11.76

Image Display

• Monitor: 0.4 inch, LCOS, 1280 × 960
• Uniformity correction: Auto, Manual, External correction
• Palettes: Black hot, white hot, red hot, fusion
• Frequency: 50 Hz

Intelligent Functions

• Wi-Fi access point: Yes
• Standby mode: Yes
• Detection range: 708 m

System

• Storage: Built-in memory module (8 GB)
• Video recording: Yes
• Photo capture: Yes

Power Supply

• Battery type: Rechargeable lithium battery
• Battery life: 7.5 hours of continuous use with Wi-Fi access point disabled (at 25°C) / 6 hours of continuous use with Wi-Fi access point enabled (at 25°C)
• Battery capacity: Displayed

General

• Power consumption: 5 VDC/2 A, 1.5 W, Type-C interface
• Operating temperature: -20°C to 55°C
• Protection rating: IP67
• Dimensions: 158.3 mm × 61 mm × 57 mm
• Weight: 290 g

HikMicro Lynx Pro Range Comparison
